This guide shows how to add MFA to an Asgardeo login flow using Authsignal. The integration is configured as a Custom Authentication connection in Asgardeo that points to an Authsignal-hosted adapter endpoint.

​
Overview

Asgardeo’s Custom Authentication lets you plug in an external authentication service as a step in any login flow. The Authsignal adapter implements that contract and delegates challenge orchestration to Authsignal, so users are redirected to the Authsignal pre-built UI to complete an MFA challenge before being returned to Asgardeo to finish signing in.

​
Prerequisites

  • An Asgardeo organization with an application configured for login.
  • An Authsignal tenant with at least one authenticator enabled.

​
Authsignal configuration

1

Enable authenticators

In the Authenticators section of the Authsignal Portal, enable the authentication methods you want to offer as MFA factors (for example, SMS OTP, Email OTP, or Passkeys).
2

Get your API key

In the API Keys section of the Authsignal Portal, copy your tenant’s Server API key. You will paste this into the Asgardeo connection in the next section.

​
Asgardeo configuration

​
1. Create the Authsignal connection

In the Asgardeo Console, go to Connections, click New Connection, and choose Custom Authenticator (Service-based). This opens the Custom Authentication wizard, which has three steps.

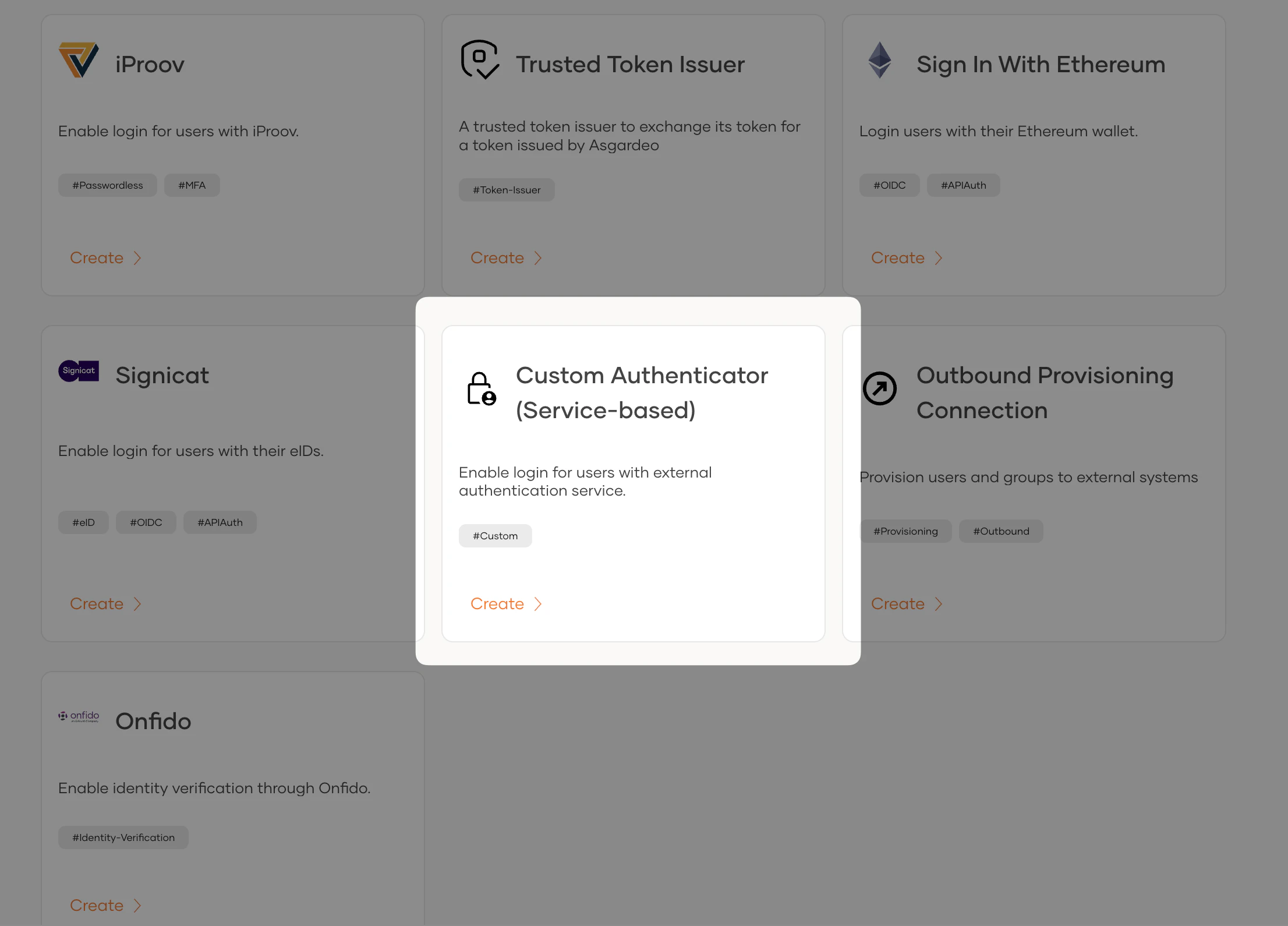

Adding the Authsignal connection
1

Authentication Type

Select 2FA Authentication and click Next.

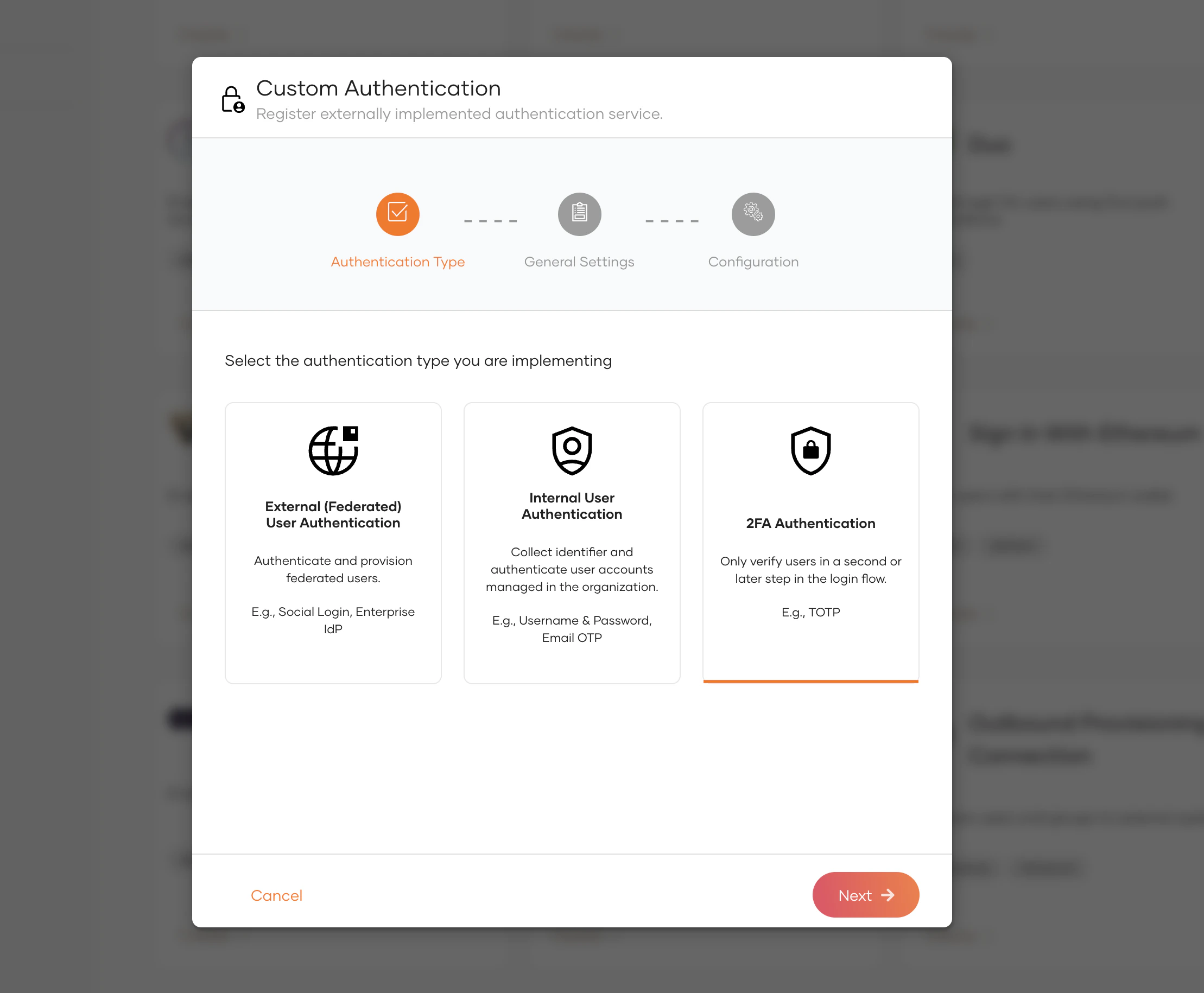

Select authentication type
2

General Settings

Provide an Identifier and a Display Name.
3

Configuration

Set the Endpoint to the Authsignal adapter URL for your tenant’s region:
https://us-connect.authsignal.com/integrations/wso2-asgardeo/authenticate
Under Endpoint Authentication, select Basic as the scheme. Paste your Authsignal tenant’s Server API key into the Username field. The Password field is required by Asgardeo but is not used by the adapter - enter any non-empty placeholder value. Click Finish.

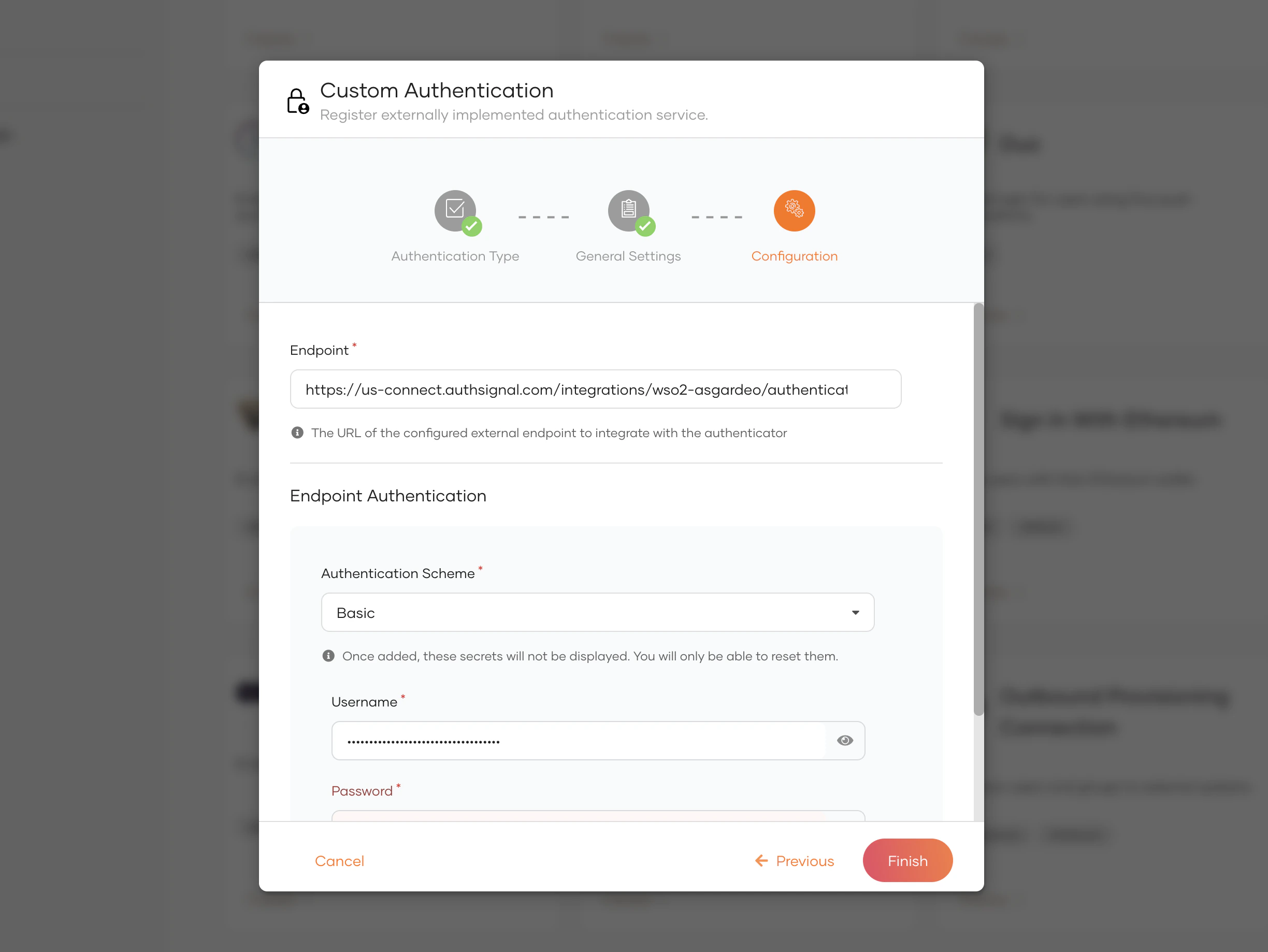

Adding the endpoint

​
2. Add the connection to your login flow

1

Open your application

In the Asgardeo Console, go to Applications and select the application you want to add MFA to.
2

Edit the login flow

On the Login Flow tab, keep your existing first step (for example, username and password) and add a new step.

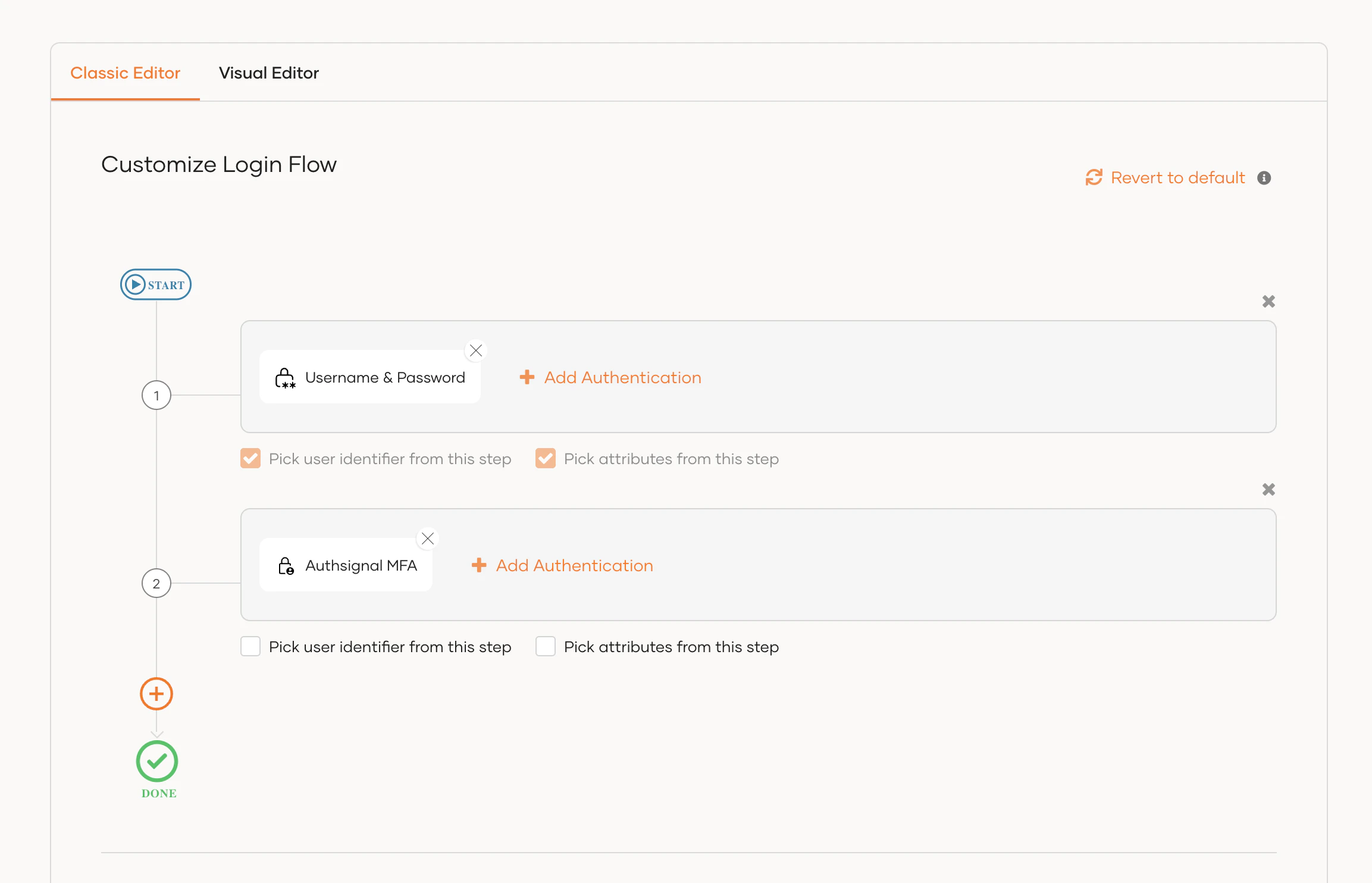

Adding the Authsignal authenticator step
3

Add the Authsignal authenticator

In the new step, add the Authsignal MFA connection you created. This step will run after the user completes the first factor. Then click Update to save the flow.
